Introduction

The MOES Zigbee Gateway is a Tuya-based device commonly used to bridge Zigbee devices with cloud services. However, many users seek local control to reduce latency, increase privacy, and gain integration flexibility with platforms like Home Assistant. This guide documents the process of jailbreaking the MOES gateway to unlock root access and bypass cloud restrictions.

Disclaimer

Warning: Jailbreaking your gateway will void any warranties and carries the risk of rendering the device non-functional. Proceed at your own risk and make full backups before making any changes.

Device Overview

• Processor: SSD202D (dual-core Cortex-A7 SoC)
• RAM: 128 MB
• Storage Layout (MTD):

root@SmartGateway:~# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 003c0000 00020000 "UBOOT"
mtd1: 00300000 00020000 "KERNEL0"
mtd2: 01200000 00020000 "ROOTFS0"
mtd3: 01000000 00020000 "USER0"
mtd4: 00200000 00020000 "FACTORY"
mtd5: 00300000 00020000 "KERNEL1"
mtd6: 01200000 00020000 "ROOTFS1"
mtd7: 01000000 00020000 "USER1"
mtd8: 02380000 00020000 "DATA"

Tools & Preparation

Hardware

• CH341A programmer for dumping NAND flash

Software

• snander-mstar — for NAND dumping and flashing
• sigma-tools — jailbreak and custom firmware tools

Tip: Always make a full NAND backup before modifying anything. This allows you to recover if something goes wrong.

Finding Access Points

• Locate UART pads on the PCB (shared with I2C)
• Common baud rate: 115200
• Observe boot logs using a serial terminal.

Exploitation / Root Access

Tuya gateways use a base firmware and an encrypted USER0 partition provided by manufacturers. This USER0 partition contains cloud integration code and custom logic.

The jailbreak process replaces this encrypted USER0 partition with a custom version, encrypted with the same key, allowing execution of custom code and bypassing the Tuya cloud entirely.

Steps to Jailbreak

You have two main options to jailbreak your device. Choose one:

Option 1: Use a Prebuilt USER0 Partition (Recommended for most users)

This is the quickest and simplest method.

1. Download the Prebuilt Image:
   • Download the user0.img from sigma-tools releases page.
2. Proceed to Initial Flashing:
   • Once downloaded, skip to the “Initial Flashing” section below.

Option 2: Build the USER0 Partition from Scratch (Advanced users)

This path offers full control and customization but requires more technical steps.

1. Obtain the Partition Key:
   • Dump the NAND flash using snander-mstar.
   • Parse and extract U-Boot environment with nand_parser.
   • Extract the AES key from the U-Boot image.
   • Use env_decoder to decrypt the partition key.
2. Build a Custom USER0 Partition:
   • Set PARTITION_KEY in work/device.mk.
   • Run make.
   • This produces an user0.img file.
3. Proceed to Initial Flashing:
   • With your custom user0.img ready, continue to the “Initial Flashing” section below.

Initial Flashing (Required for both options)

This step is necessary whether you chose Option 1 or Option 2.

1. Prepare for Flashing:
   • By default, device access is limited, so flashing is only possible with the snander-mstar tool.
   • You need to find the address of the USER0 partition. You can typically find this by watching the Linux boot process (via UART) and noting the partition table.
2. Flash the Image:
   • TODO(mb): add flash command here (using snander-mstar and your user0.img)
3. Reboot and Verify:
   • After flashing, reboot the device and watch the boot process via UART.
   • If successful, the device should obtain an IP address via DHCP and start an SSH server.
   • You can then access it with user root and the password defined in sigma-tools/alt_app/startup.sh.
   • Note on Future Updates: Once you have SSH access, subsequent updates to your custom firmware can be applied directly over SSH, without needing to repeat the NAND flashing process.

Modifications

The jailbreak process uses a startup.sh script as the entry point for modifications.

You can include your own changes and generate updated partition image.

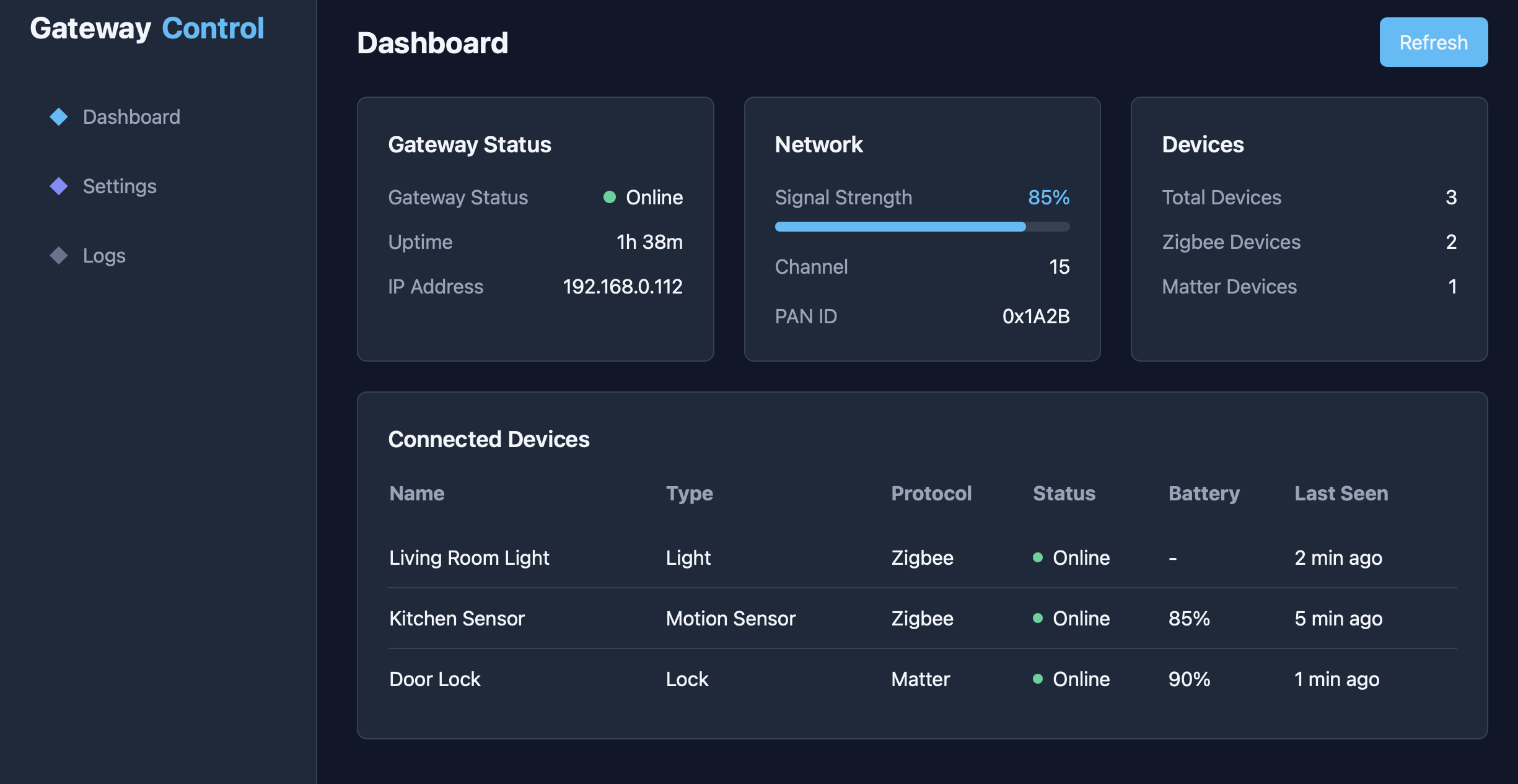

A simple web interface is hosted on the device at port 80.

Integration & Use

Once jailbroken, the gateway can be used with:

• Home Assistant
  • ZHA: Add integration using socket://{IP}:1234
  • No cloud dependency
  • Works locally on LAN

Status: Tested with 15 Zigbee devices; stable performance and no disconnects over several weeks of use.

Recovery & Failsafe

If the device becomes unresponsive or fails to boot:

1. Connect NAND programmer
2. Flash your previously saved NAND backup using snander-mstar
3. Reboot and test UART output
